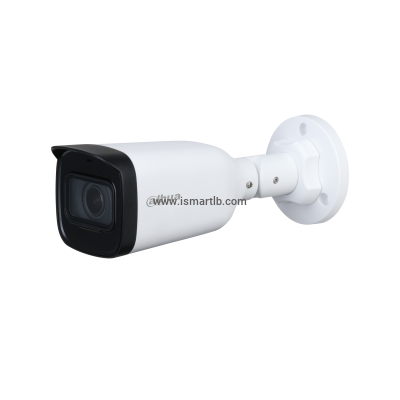

CAMERA 5MP 2.7-12MM OUTDOOR DAHUA B3A51-Z

HAC-B3A51-Z 5MP HDCVI IR Bullet Camera * The parameters and datasheets below can only be applied to A51-S2 series. * In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max. 25 fps@5MP (16:9 video output) > CVI/CVBS/AHD/TVI switchable > 2.7 mm–12 mm motorized lens > Max. IR length 40 m; Smart IR > IP67; DC12V Camera Image Sensor 1/2.7 inch CMOS Max. Resolution 2880 (H) × 1620 (V) Pixel 5MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s S/N Ratio > 65 dB Min. Illumination 0.01 Lux/F1.6; 30IRE; 0 Lux IR on Illumination Distance 40 m (131.2 ft) Illuminator On/Off Control Auto; manual Illuminator Number 2 Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Motorized vari-focal Auto Focus N/A Mount Type Φ14 Focal Length 2.7 mm–12 mm Max. Aperture F1.6 Field of View Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–55° Iris Type Fixed iris Close Focus Distance 0.5 m (1.64 ft) DORI Distance Detect Observe Recognize Identify 2.7 mm 69 m (226.37 ft) 27.6 m (90.55 ft) 13.8 m (45.27 ft) 6.9 m (22.63 ft) 12 mm 191.6 m (628.6 ft) 76.64 m (251.44 ft) 38.32 m (125.72 ft) 19.16 m (62.86 ft) Video Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) Day/Night Auto switch by ICR BLC BLC/HLC/DWDR WDR DWDR White Balance Auto; manual Gain Control Auto; manual Noise Reduction 2D NR Smart IR Yes Mirror Off/On Privacy Masking Off/On (8 areas; rectangle) Certifications Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010 A1:2015, EN55035:2017, EN50130-4:2011 A1:2014, EN62368-1:2014 A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Power Power Supply DC 12V ±30% Power Consumption Max 6.6W (12V DC; IR on) Environment Operating Temperature –30°C to 60°C (–22°F to 140°F) < 95% (non-condensation) Storage Temperature –30°C to 60°C (–22°F to 140°F) < 95% (non-condensation) Protection Grade IP67 Structure Casing Metal front cover plastic main body plastic bracket Camera Dimensions 243.5 mm × 90.7 mm × 90.7 mm (9.59" × 3.57" × 3.57") Net Weight 0.39 kg (0.86 lb) Gross Weight 0.61 kg (1.34 lb) Download
