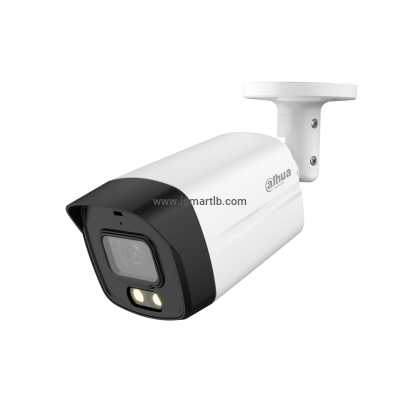

CAMERA FULL COLOR 5MP 3.6MM OUTDOOR DAHUA HFW1509TLMP-LED

DH-HAC-HFW1509TLMP-LED 5MP Full-color HDCVI Bullet Camera * The parameters and datasheets below can only be applied to1509-S2 series. *In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version. > Max 25 fps@5MP (16:9 video output) > 120 dB true WDR, 3D NR > 24/7 color imaging > 40 m illumination distance > CVI/CVBS/AHD/TVI switchable > 3.6 mm fixed lens (2.8 mm optional) > IP67, 12V DC Camera Image Sensor 5MP CMOS Max. Resolution 2880 (H) × 1620 (V) Pixel 5MP Scanning System Progressive Electronic Shutter Speed PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s S/N Ratio > 65 dB Min. Illumination 0.001 Lux/F1.0, 0 Lux warm light on Illumination Distance 40 m (131.2 ft) Illuminator On/Off Control Auto; manual Illuminator Number 2 Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed lens Mount Type M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.0 Field of View 2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88; V: 46°; D: 104° Iris Type Fixed iris Close Focus Distance 2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 67.4 m (212.3 ft) 27.0 m (88.6 ft) 13.5 m (44.3 ft) 6.7 m (22.0 ft) 3.6 mm 80.0 m (262.5 ft) 32.0 m (105.0 ft) 16.0 m (52.5 ft) 8.0 m (26.2 ft) Video Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) BLC BLC/HLC/WDR/HLC-Pro WDR 120 dB White Balance Auto; Area WB Gain Control Auto; manual Noise Reduction 3D NR Smart Light Yes Mirror Off/On Privacy Masking Off/On (8 areas, rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1 CAN/CSA C22.2 No.60950-1) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input N/A Power Power Supply 12 V ±30% DC Power Consumption Max 6.4 W (12 V DC, warm light on) Environment Operating Temperature –40 °C to 60 °C (–40 °F to 140 °F); < 95% (non-condensation) Storage Temperature –40 °C to 60 °C (–40 °F to 140 °F); < 95% (non-condensation) Protection Grade IP67 Structure Casing Metal front cover plastic main body metal bracket Camera Dimensions 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.15" × 3") Net Weight 0.33 Kg (0.73 lb) Gross Weight 0.52 Kg (1.15 lb) Download
