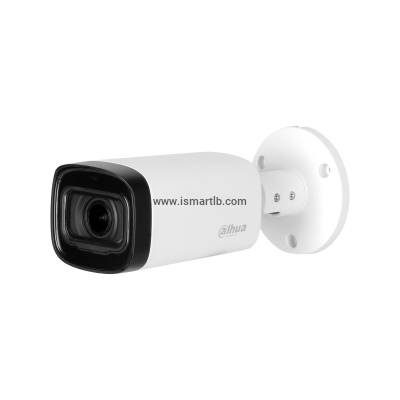

DAHUA CAMERA 2MP 2.7-12MM OUTDOOR DH-HAC-HFW1200R-Z-A

HAC-HFW1200R-Z-A-DP 2MP IR HDCVI Motorized Vari-Focal Bullet Camera * The parameters and datasheets below can only be applied to 1200-S6 series. > Max. 30 fps@1080p. > Smart IR Illumination. > 80 m illumination distance. > Super Adapt. > Built-in Mic. > 2.7 mm–12 mm motorized lens. > CVI/CVBS/AHD/TVI switchable. > IP67, 24 VAC/12 VDC. Camera Image Sensor 2 MP CMOS Max. Resolution 1920 (H) × 1080 (V) Scanning System Progressive Electronic Shutter Speed PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s Min. Illumination 0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >65 dB Illumination Distance 80 m (262.47 ft) Illuminator On/Off Control Auto Illuminator Number 4 (IR light) Angle Adjustment Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Motorized Vari-focal Auto Focus No Lens Mount φ14 Focal Length 2.7 mm–12 mm Max. Aperture F1.6 Field of View H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7° Iris Control Fixed Close Focus Distance 0.8 m (2.62 ft) DORI Distance Lens Detect Observe Recognize Identify 2.7 mm 47.4 m (155.51 ft) 18.9 m (62.01 ft) 9.5 m (31.17 ft) 4.7 m (15.42 ft) 12 mm 155.6 m (510.50 ft) 62.2 m (204.07 ft) 31.1 m (102.03 ft) 15.6 m (51.18 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Video Video Frame Rate CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480) Day/Night Auto(ICR)/Color/B/W BLC BLC; HLC; DWDR WDR DWDR White Balance Auto; Area white balance Gain Control Auto Noise Reduction 3D NR Illumination Mode Smart IR Mirror Yes Privacy Masking Off/On (8 areas, rectangle) Certification Certifications CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 CAN/CSA C22.2 No. 62368-1-14 Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in Mic Power Power Supply 24 VAC ± 30%;12 VDC ± 10% Power Consumption Max 11.4 W (12 VDC, IR on) Environment Operating Temperature –30 °C to 60 °C (–22 °F to 140 °F) Operating Humidity <95% (RH), non-condensing Storage Temperature –30 °C to 60 °C (–22 °F to 140 °F) Storage Humidity <95% (RH), non-condensing Protection IP67 Anti-corrosion Level Basic Protection Structure Casing Material Metal Product Dimensions 209.6 mm × 90.4 mm × 90.4 mm (8.30" × 3.56" × 3.56") Net Weight 0.58 kg (1.28 lb) Gross Weight 0.79 kg (1.74 lb) Installation Wall mount; ceiling mount; vertical pole mount Download
