EZ Lane Drop-Arm Optical Turnstile

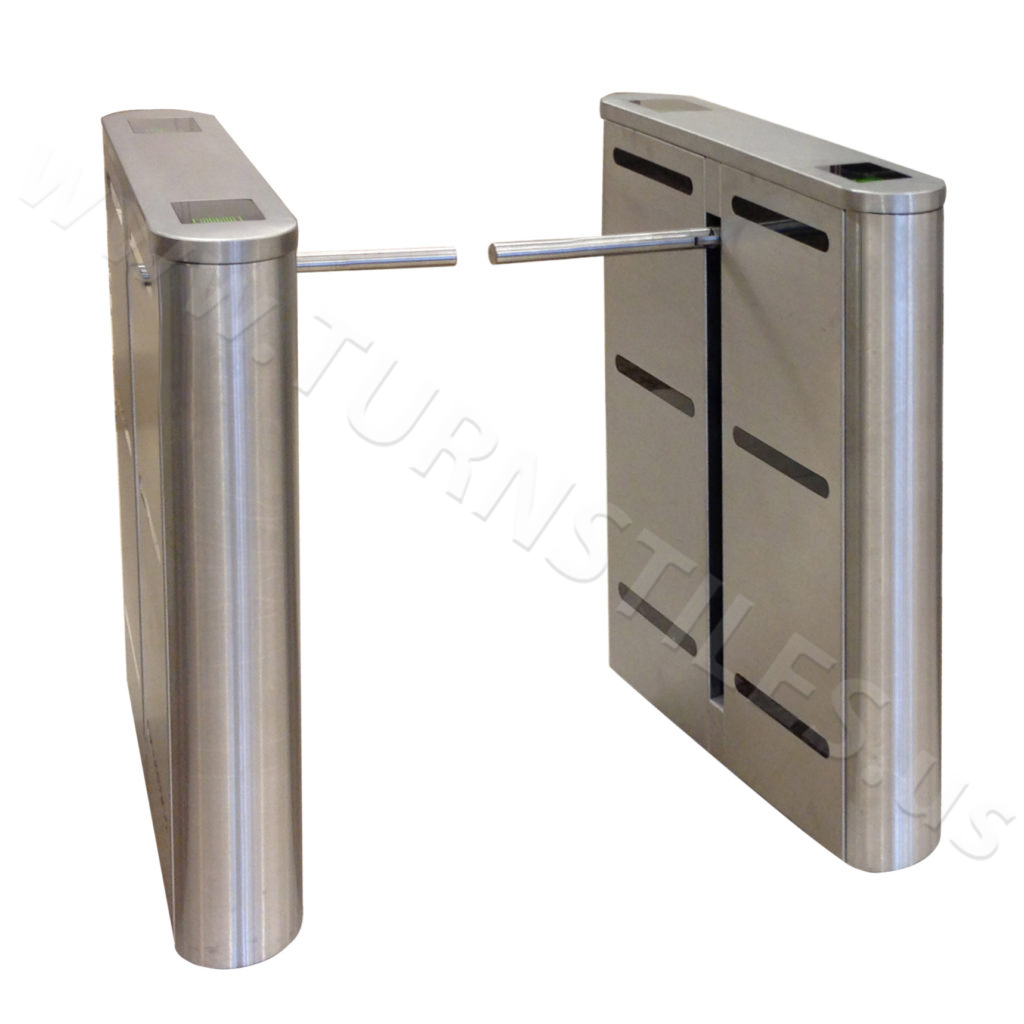

Description The EZ Lane Drop Arm is our entry-level barrier turnstile with a single arm that quickly pivots down into the cabinet to allow entry. The shallow cabinet depth and functional design allow this model to work well in restricted spaces. The arm is a visual deterrent to restrict entry and must be fully lowered to allow passage. It has slim barrier footprints, good for small spaces, and the stainless steel finish complements any setting. Data Sheet   FEATURES Mid-range optical turnstile Basic barrier security Drop arm Bi-directional Card stacking is optional Tailgate detection Crawl detection Audible & visible alerts Flat or rounded ends Compact design, small footprint Standard finish: brushed stainless steel   OPTIONS With Round Ends OR Flat Ends Add Access Control Readers Climb-over detection Access control software Custom finish options   DRAWING & DIMENSIONS   Standard Inch Standard MM ADA Inch ADA MM Lane Width 28 711 36 914 Pedestal Length w/ Rounded Ends 36 914.4 36 914 Pedestal Length w/ Flat Ends 33 838 33 838 Pedestal Height 38 965 38 965 Pedestal Width 6.5 165 6.5 165   INSTALLATIONS
