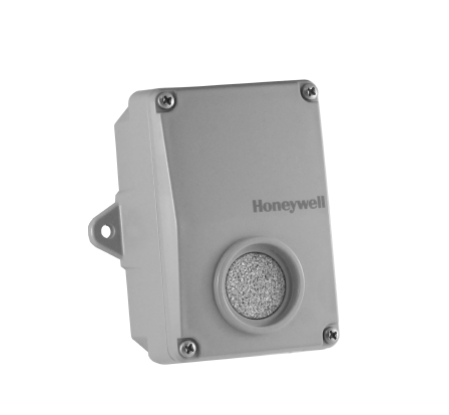

HCMD5B1000 Honeywell Carbon Monoxide Detector

For Bulk requirement, Kindly click on enquiry now button   Product Details: Product Description Brand Honeywell Model No. HCMD5B1000 Sensor Type Electrochemical Carbon Monoxide Detector Measurement Range 0-300 PPM Accuracy ±5 PPM or 5% of reading (whichever is greater) Accuracy rated 0˚ to 50˚C, 15 to 95% RH Life Expectancy 5-7 years in air Typical Coverage Area 700 m² (7500 ft²) or 15 m (50 ft²) radius Operating Conditions -20˚ to 50˚C  15 to 95% RH Sample Method Diffusion Stability <5% signal loss/year Response Time <35 seconds for 90% step change Wiring Connections Screw terminal block (14 to 22 AWG) External Dimensions 71 x 104 x 46mm (2.8”w x 4.1”h x 1.8”d) Enclosure Ratings ABS – UL94-V – IP65 (NEMA 4X) Sensor Agency Approvals Sensor is UL Recognized Component for ANSI/UL-2034, UL-2075 Relay Output Form C, (NO & NC), 5 Amps @ 250Vac/30Vdc Power Supply 24 Vdc ± 20% or 24 Vac ± 10% Consumption 50 mA max Output Signal 4-20 mA sourcing Output Drive at Capability 550 ohms max. @ 24 Vac/dc Relay Contacts Form C contact (N.O. and N.C.) 5 amps @ 250 Vac, 5 amps @ 30 Vdc Relay Trip Point 25, 60 or 150 ppm, jumper selectable Relay Hysteresis 3% or 9 ppm Above specifications mentioned are for quick reference only. Actual technical details has to be obtained from below catalog.
