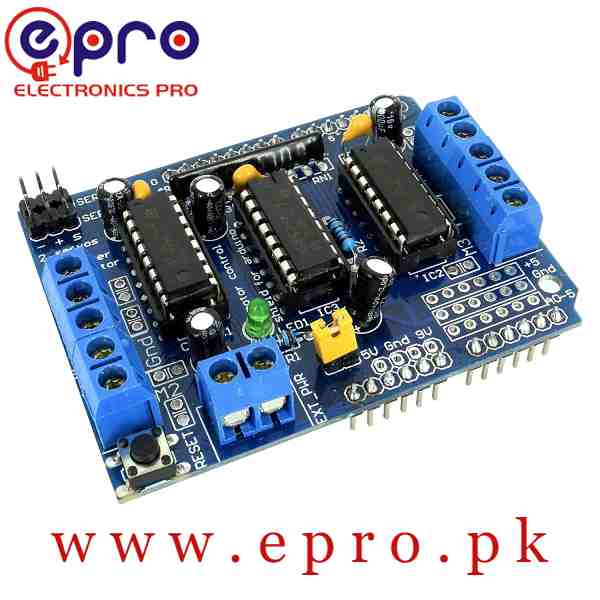

L293D Motor Driver Shield in Pakistan

Product Description of L298 L2983D Motor Driver Module Arduino Motor Driver Module:   This L293D Motor Driver Shield/ servo shield is most versatile on the market. It has the features of 2 servo and 4 motor connectors for DC or stepper motors. This feature makes it a great shield for any robotic project. This l298 motor driver is full-featured and used to drive 4 DC motors or 4 stepper motors and we can also attach two 5V servos. DC motor and stepper motors are drive-by L298D and servo motor is a drive with Arduino pin numbers 9 and 10. L298D is also a monolithic integrated drier. It is a high voltage and high current and 4 channel driver. Users can use a power supply of up to 36 volts. And chip can supply a maximum current of 600mA per channel. So it means we can use some pretty big motors. L298D motor driver is also called the type of H-Bridge. Get all types of Shields, Sensors, Modules, and Drones at Pakistan’s Number One Online Selling Store epro.pk. Then this question arises what is H-Bridge. So H-Bridge is typically an electrical circuit and this electrical circuit that enables a voltage to be applied across a load in either direction to an output like the motor. This shield contains 2 two L298D motor drivers and one 74HC595 shift register. This shift register expands 3 pins of the Arduino to the 8 pins. And it controls the direction of the motor drivers. PWM outputs of the Arduino is connected to the L298D and output enables the L298D.   Features of L298D Motor Driver Shield for Arduino:   It is multi-function and easy to operate. It has powerful drive library support and feature updates. It supports 4-channel DC motor Drives, stepper motor, or 2 while driving two servos. We can connect 2 connections for 5V servos connected to the Arduino’s high-resolution dedication timer. H-bridge motor driver chipset provides 0.6A per bridge and peaks current is 1.2A with thermal shutdown protection and also internal kickback protection diodes. Users can run the motors on 4.5V DC to 25V DC. We can drive up to 4 bi-directional DC motors with individual 8-bit speed selection. We can operate up to 2 stepper motors with single coil, double coil or interleaved stepping. If we use pull-down resistors. These resistors keep motors disabled during power-up. It has big terminal block connectors to easily hook up wires (18-26AWG) and power. There is an Arduino reset button brought up top. It has 2 pin terminal block and jumper to connect external power for separate logic/motor supplies. It is tested compatible with Arduino Mega 1280 and 2560 Diecimila, Duemilanova, and UNO. You can download the easy- to – use Arduino software library.   Package Included: One Piece of L298D Motor Driver Shield for Arduino buy in Pakistan   Related Links:   How to Use L298D Motor Driver Shield Other Types of Arduino Shields
