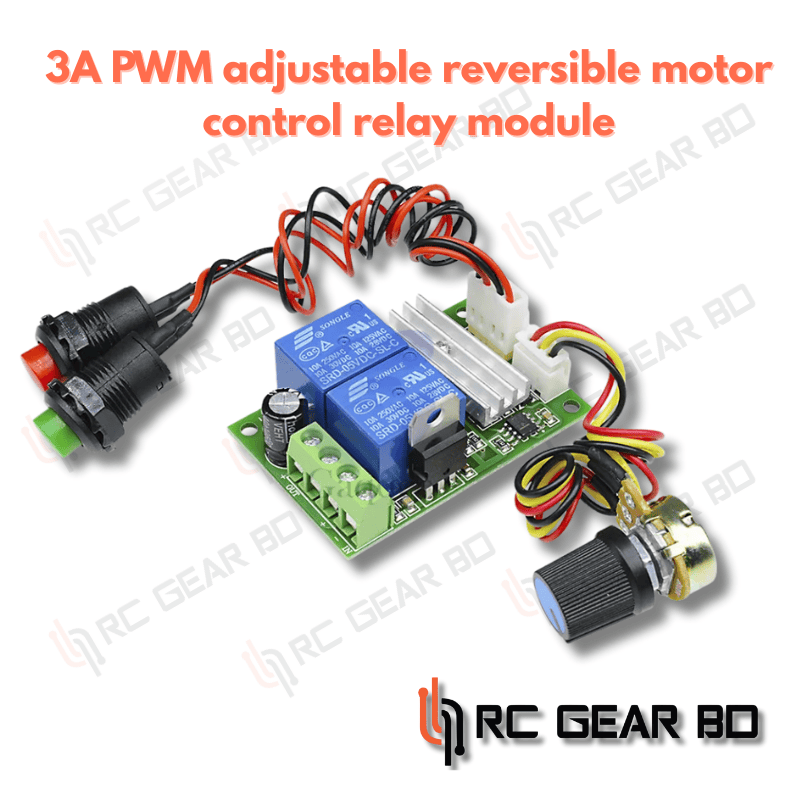

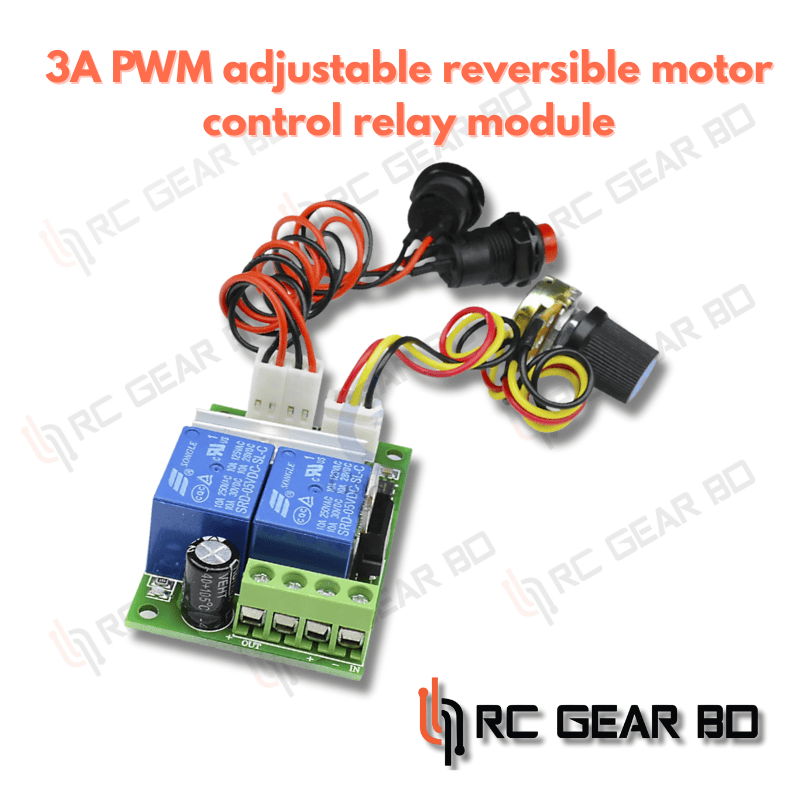

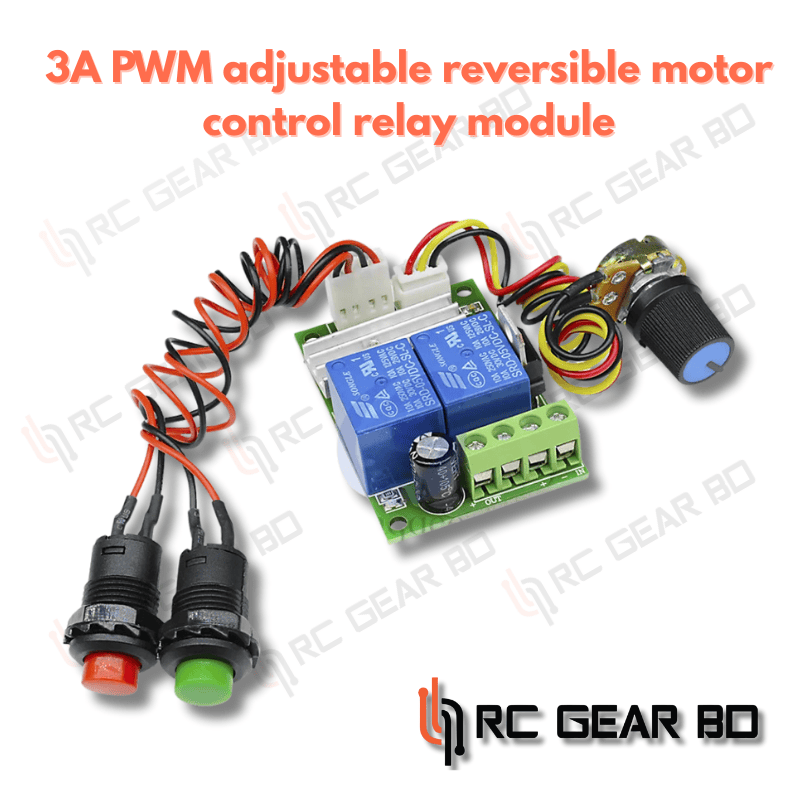

DC 12V 24V 3A 21kHz PWM DC Motor Speed Regulator Controller Adjustable Speed Control Reversible Relay Module 6V-28V 1203BS

1203BS DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM) The input power range is DC 6-28V Control the forward or reverse direction and the stop of DC motor by button switch. Press the green button, the motor reverses rotates; and release the button, the motor stops Press the red button, the motor clockwise rotates; and release the button, the motor stops Feature: Input supply voltage: 12V-80VDC PWM frequency: 21kHz; Duty Cycle adjustable: 0%-100% Suitable current range:current rating: 30A Potentiometer with switch function The display range of 3-digit LED display is “000”-“100”. (For example, displayed “055”, it means that the PWM output duty cycle is 55%.) Input supply voltage: 6V-24V DC Duty Cycle adjustable: 0%-100% Button switches included The maximum continuous output current: 3A Product Dimensions: 57 * 37 *21mm Package Included: 1PC*3A PWM Speed Controller
