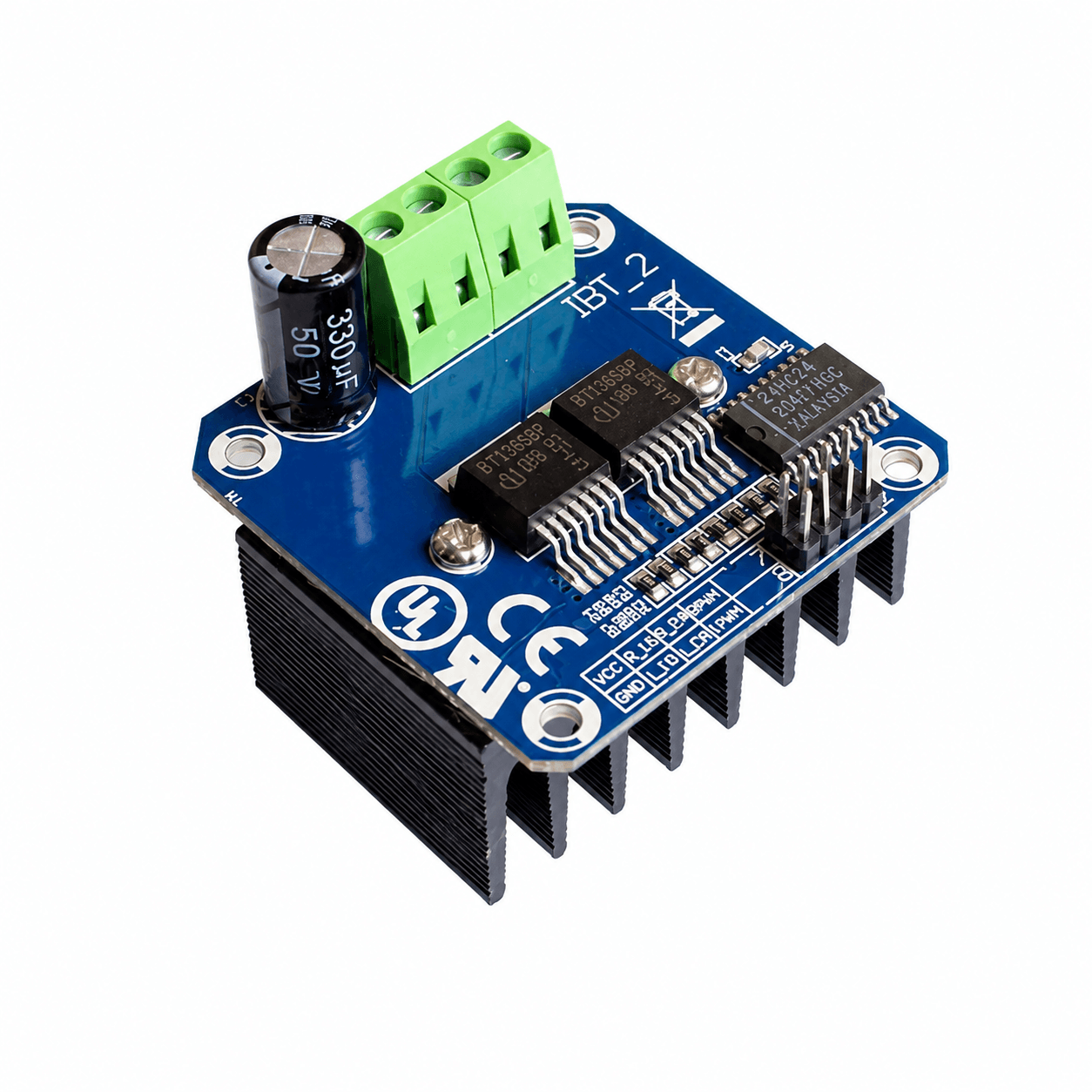

BTS7960 H-Bridge 43A Motor Driver Module

BTS7960 H-Bridge 43A High Power Motor Driver Module The BTS7960 H-Bridge Motor Driver Module is a high-power DC motor driver designed for robotics, automation, electric vehicles, and industrial applications. It supports bidirectional motor control, PWM speed regulation, and features built-in protection against over-current, over-temperature, and under-voltage conditions for reliable operation. Specifications : Model: BTS7960 H-Bridge Motor Driver (IBT-2) Driver IC: Dual BTS7960B Motor Supply Voltage: 6V – 27V DC Logic Voltage: 3.3V – 5V Maximum Current: Up to 43A Continuous / High Peak Current PWM Frequency: Up to 25kHz Control Interface: RPWM, LPWM, R_EN, L_EN Control Mode: PWM or Logic Level Duty Cycle: 0% – 100% Protection Features: Over-Current Protection Over-Temperature Protection Under-Voltage Protection Short-Circuit Protection Module Dimensions: Approx. 50 × 50 mm Suitable For: High-power DC motors, robotics, electric vehicles, automation systems Package Includes 1 × BTS7960 H-Bridge Motor Driver Module
